180-Degree Steel Coil Upender: Robust 6-Ton Germany

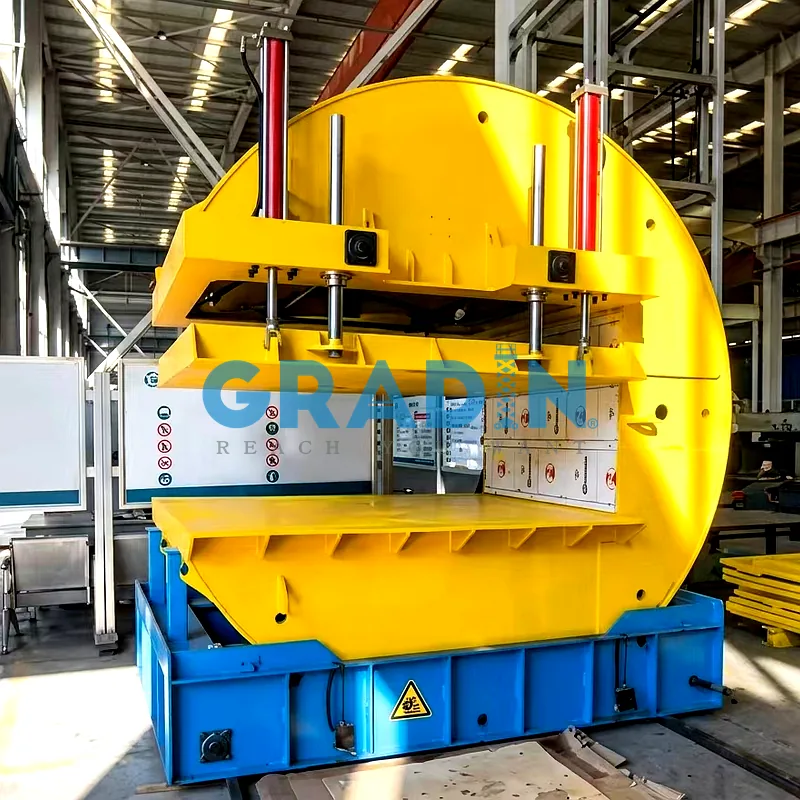

Eliminating dynamic shock at the 90-degree threshold and preventing coil edge damage required restructuring both the mechanical drivetrain and hydraulic clamping circuits. Engineering the 180-degree steel coil inverter around a dual-cylinder four-post platen, a 1:126 reduction helical-bevel gearmotor, and flanged hydraulic lock valves secured structural stability throughout the rotation arc. The structural geometry and motion profiles were verified through full-load shop testing prior to export packing.

• Heavy-Duty C-Frame Drum & Forged 42CrMo Support Rollers: The rotating body uses 30 mm Q355B structural steel plates welded into a rigid box section. Outer rolling rings turned on a vertical lathe restrict radial runout within 0.15 mm. The rotating assembly rests on four support wheels forged from 42CrMo alloy steel, quenched and induction-hardened to HRC 52–56. Each wheel runs on heavy-duty HRB UCF210 four-bolt flange units, backed by four adjustable lateral guide rollers that eliminate axial float, maintaining drum equilibrium under 9.7 tons of rotating mass.

• SR97 4kW Helical-Bevel Drive & Duplex Roller Chain Transmission: Drum rotation originates from an SEW SR97 4.0 kW helical-bevel gearmotor delivering a 1:126 reduction ratio, routing high holding torque through an industrial ANSI 80-2 / 16A-2 duplex roller chain tensioned around the drum circumference. This large reduction ratio self-locks the drum against gravitational overrunning as the coil passes the 90-degree vertical mark, controlling center-of-gravity shifts and completing the smooth 180-degree turnover in 62 seconds without chain snatch or roller liftoff, meeting transmission limits under ISO 606:2015.

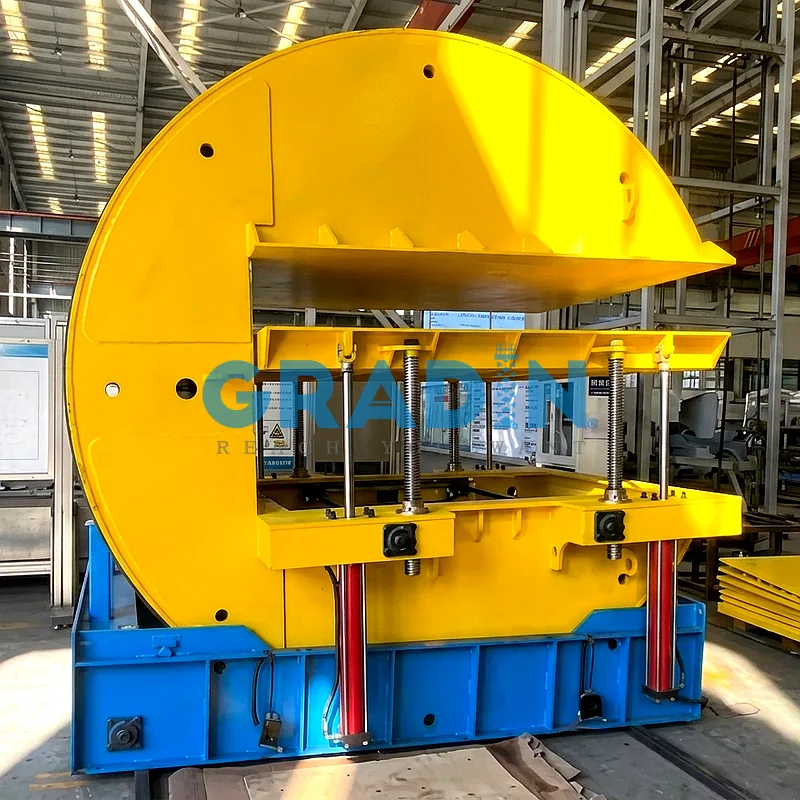

• Dual-Cylinder Clamping with 130 mm to 830 mm Stroke: Vertical clamping across the 2000 × 2000 mm steel platen relies on dual hydraulic cylinders (Ø80 mm bore / 700 mm stroke) powered by a 3.0 kW hydraulic pack. The platen maintains parallel travel through four Ø70 mm induction-hardened, hard-chrome guide columns riding in oil-impregnated graphite bronze bushings. This four-post geometry accommodates 50 mm of coil off-center placement during forklift staging, preventing guide binding while spanning coil widths from 130 mm to 830 mm.

• Positive Hydraulic Pressure Retention & Coil Protection: Clamping line pressure holds at 12 MPa via manifold-mounted, hard-seated pilot check valves flanged to each cylinder port, eliminating flexible hose burst risks in line with ISO 4413:2010. Pressure drop across the 62-second turnover cycle measured below 0.1 MPa. A proportional relief valve regulates dynamic clamping force up to 60 kN (6000 kgf), clamping transport pallets without surface bite into outer coil wraps.

• German CE-Compliant Control Architecture & Dual-Platform Interlocks: Electrical controls run on 400V 50Hz European three-phase power, integrating Schneider contactors, overload breakers, and heavy-duty position limit switches. The operator runs turnover sequences through an industrial wireless remote or the main stationary console. The control logic enforces strict safety interlocks: 180-degree rotation cannot initiate until pressure sensors confirm 12 MPa hydraulic lock, and clamp cylinders cannot retract until the drum registers at mechanical zero or 180-degree home stops, meeting DIN EN ISO 12100:2010 and EU Machinery Directive 2006/42/EC requirements.
